parse_tax_query() does not handle array query param when taxonomy has rewrite set to hierarchical

[chamois_blanc]

Accessing the following URL on one of my sites create a PHP 8 type error:

/calendar/list/?tribe_events_cat[0]=advertised

tribe_events_cat is a taxonomy associated with the tribe_events custom post type. It is defined with rewrite as hierarchical.

The code in parse_tax_query() does not seem to handle this case properly. If rewrite is not set to hierarchical, the code checks whether the query term is an array and implodes it:

<?php
        $term = $q[ $t->query_var ];

        if ( is_array( $term ) ) {
          $term = implode( ',', $term );
        }

but if rewrite is set to hierarchical, the term is passed to wp_basename() directly. I don't know much about this code, but it seems like a bug.

Here is the code trace:

[ERROR] lvl:1 | msg:Uncaught TypeError: urlencode(): Argument #1 ($string) must be of type string, array given in .../public_html/wp-includes/formatting.php:5525
Stack trace:
#0 .../public_html/wp-includes/formatting.php(5525): urlencode()
#1 .../public_html/wp-includes/class-wp-query.php(1166): wp_basename()
#2 .../public_html/wp-includes/class-wp-query.php(936): WP_Query->parse_tax_query()
#3 .../public_html/wp-includes/class-wp-query.php(1820): WP_Query->parse_query()
#4 .../public_html/wp-includes/class-wp-query.php(3749): WP_Query->get_posts()
#5 .../public_html/wp-includes/class-wp.php(663): WP_Query->query()
#6 .../public_html/wp-includes/class-wp.php(783): WP->query_posts()
#7 .../public_html/wp-includes/functions.php(1332): WP->main()
#8 .../public_html/wp-blog-header.php(16): wp()
#9 .../public_html/index.php(17): require('...')
#10 {main}
  thrown | file:.../public_html/wp-includes/formatting.php | ln:5525

It does not appear to go through any theme/plugins code, so my guess is that it's a WP core bug. Let me know if I'm getting this wrong.

[chamois_blanc]

I think the code should look like this instead:

<?php
        $term = $q[ $t->query_var ];

        if ( is_array( $term ) ) {
          $term = implode( ',', $term );
        }

        if ( ! empty( $t->rewrite['hierarchical'] ) ) {
          $term = wp_basename( $term );
        }

[chamois_blanc]

Or maybe like this:

<?php
        $term = $q[ $t->query_var ];

        if ( ! empty( $t->rewrite['hierarchical'] ) ) {
          if ( is_array( $term ) ) {
            foreach ( $term as $k => $v ) {
              $term[$k] = wp_basename( $v );
            }
          } else {
            $term = wp_basename( $term );
          }
        }

        if ( is_array( $term ) ) {
          $term = implode( ',', $term );
        }

[chamois_blanc]

Unfortunately this is not fixed in 6.2.

[chamois_blanc]

Here is a diff of a possible fix:

<?php
        // Comment out this code
        // if ( ! empty( $t->rewrite['hierarchical'] ) ) {
        //  $q[ $t->query_var ] = wp_basename( $q[ $t->query_var ] );
        // }

        $term = $q[ $t->query_var ];

        // BEGIN - Add this code
        if ( ! empty( $t->rewrite['hierarchical'] ) ) {
          if ( is_array( $term ) ) {
            foreach ( $term as $k => $v ) {
              $term[$k] = wp_basename( $v );
            }
          } else {
            $term = wp_basename( $term );
          }
        }
        // END

[pskli]

I'm having this issue as well.

When trying to filter archive pages on multiple taxonomy terms using array query args in the URL (such as ?product_cat[]=t-shirts&product_cat[]=accessories), a fatal error is triggered (only if the requested filter taxonomy rewrite is hierarchical).

For instance, this is an issue on the default WooCommerce shop page if trying to implement a custom filtering logic.

When accessing a URL with a taxonomy slug URL parameter using array format (such as ?product_cat[]=accessories), a fatal error is triggered if the related taxonomy is hierarchical.
For example, visiting the default WooCommerce /shop page with multiple product_cat[]=… query args will trigger this error.

Trac ticket: [](https://core.trac.wordpress.org/ticket/57300)

---

This Pull Request is for code review only. Please keep all other discussion in the Trac ticket. Do not merge this Pull Request. See ​GitHub Pull Requests for Code Review in the Core Handbook for more details.

[pskli]

Steps to recreate on a fresh install

• Register a new post type and taxonomy. Post type needs an archive (for testing purposes) and taxonomy needs rewrite.hierarchical set to true. Gist for that step available here: ​https://gist.github.com/pierre-dekode/c934284b88ebf0a31f4e433f265c4a64
• Flush permalinks
• Visit the post type archive with ?taxonomy[]=something query arg in URL. Example with Gist provided above: http://<yoursite.local>/my_custom_post_type/?my_taxonomy[]=something

This will trigger the fatal error.

---

Alternatively, do a fresh WordPress + WooCommerce installation and create the default WC pages. Then visit the shop page with a product_cat[] query arg, such as /shop?product_cat[]=something. This will also trigger the fatal error.

[oglekler]

Hi! Even with instructions I was unable to reproduce this issue in several envs with WP 6.2 and trunk, PHP 7.4 and PHP 8.2, custom post type and hierarchical taxonomy and product_cat of WooCommerce 7.0.0.

But it looks like there is something, #58109 - related, ticket I was unable to reproduce either.

I wonder if something else is interfering with these cases. It will be good to know where this is coming from.

[pskli]

Thank you @oglekler!

As you can see in my previous comment (and provided Gist), the critical thing is to have the $args['rewrite']['hierarchical'] taxonomy registration argument set to true.

Not the $args['hierarchical'] argument :)

Can you let me know if that was the case? And maybe share the test code you've used?

Thank you!

[oglekler]

@pskli I still cannot reproduce it. I tried to change permalinks in case of they can interfere somehow, but didn't manage to get an error either. I wonder if we can get something from your deserialized rewrite_rules option value 🤔

[pskli]

Thanks for your help @oglekler

My rewrite rules (fresh 6.2 install, no other plugin except a custom one to load my custom CPT and taxonomy, see Gist above) are: ​https://gist.github.com/pierre-dekode/4ed610312680f7d6e67f56cf3b366081

On PHP 7.4, I get a PHP Warning displayed on the 404 page:

On PHP 8.1, I get a PHP Fatal error:

---

If I install and activate Query Monitor, I can see that the matching rewrite rule for this URL is 'my_custom_post_type/?$' => 'index.php?post_type=my_custom_post_type'
The tested URL being http://core.wp/my_custom_post_type/?my_taxonomy[]=test

Let me know how I can help!

[pskli]

Actually, it seems that it is not necessary to access the custom post type rewrite rule to trigger the fatal error.

By visiting http://core.wp/?my_taxonomy[]=test — I get it too.

The my_taxonomy[] array query param is the culprit here, subsequently triggering the WP_Query->parse_tax_query method.

@oglekler can you share the custom taxonomy code you've created maybe?

[pauldewouters]

I was able to reproduce this error, and I wrote a phpunit test case for the patch
​https://github.com/pierre-dekode/wordpress-develop/pull/1/files

[chamois_blanc]

Thank you @pauldewouters for providing a repro and unit test. Any chance to get this bug fixed soon-ish? Otherwise I have to patch WP manually every time there is a version update :/

[petitphp]

Test Report

This report validates that the indicated patch addresses the issue.

Patch tested: ​https://github.com/WordPress/wordpress-develop/pull/4396.diff

Steps used to reproduce the issue :

• Using a testing environment with PHP >= 8.0
• Create a mu-plugin with this gist ​https://gist.github.com/pierre-dekode/c934284b88ebf0a31f4e433f265c4a64
• Create two terms tax-1 and tax-2 for the taxonomy my_taxonomy
• Go to ​http://localhost/?my_taxonomy[]=tax-1&my_taxonomy[]=tax-2
• ❌ The site fail to render with a fatal error : Fatal error: Uncaught Error: urlencode(): Argument #1 ($string) must be of type string, array given

Environment

• OS: macOS 13.6.1
• Web Server: Nginx
• PHP: 8.0.30
• WordPress: 6.5-alpha-56966-src
• Browser: Firefox 122b9
• Theme: Twenty Twenty-Four
• Active Plugins:
  • Query Monitor 3.15.0

Actual Results

• ✅ Issue resolved with the patch

Supplemental Artifacts

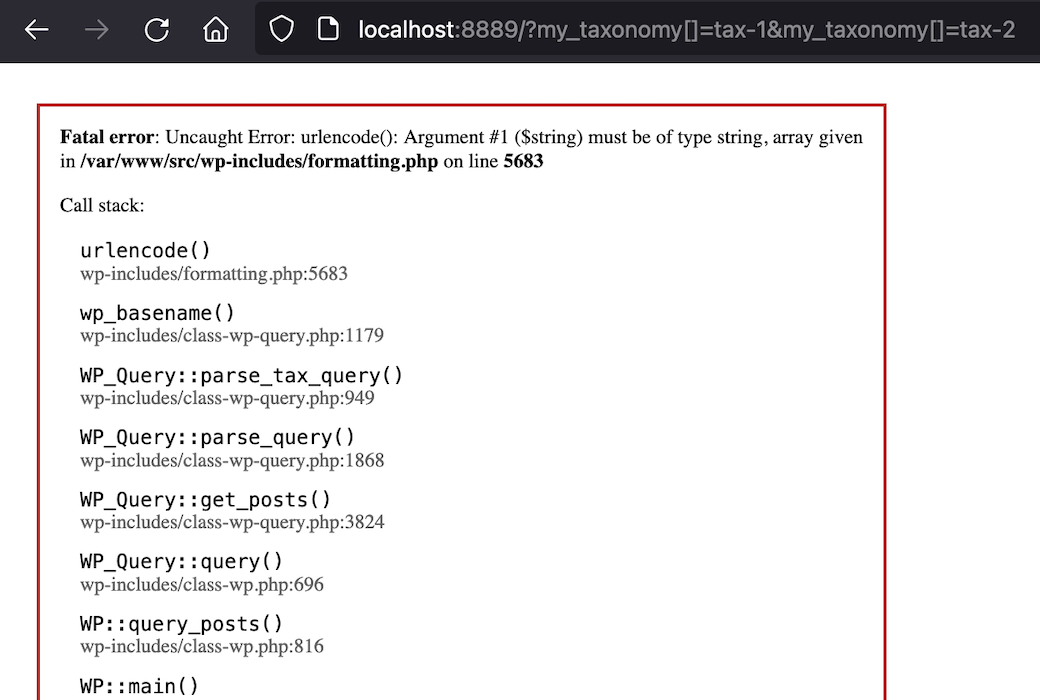

Before patch 4396:

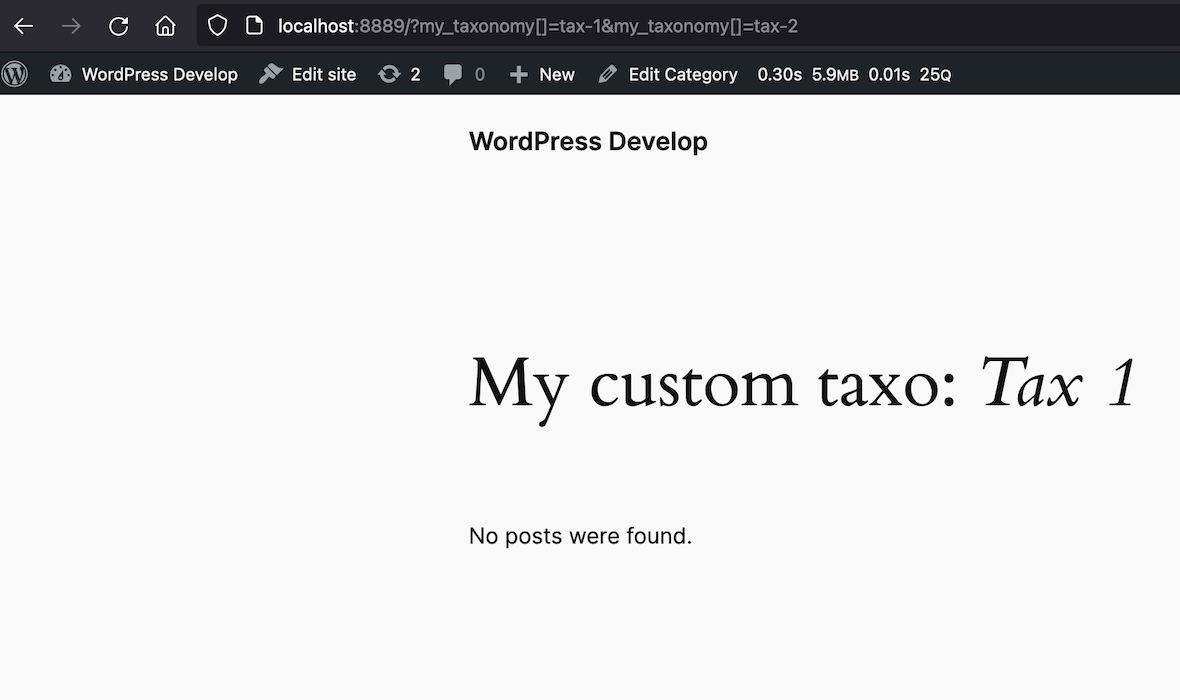

After patch 4396:

Hey @pierre-dekode, love your solution for this. Let's hope this PR will be merged soon.

Why is there still no progress? I need to manually fix this after every WP update which is kind of annoying :-(

[dd32]

#59826 was marked as a duplicate.
