#58475 new defect (bug)

Twenty Twenty-Three: Aubergine variation's background implementation causes any block that impacts page height to impact header

Reported by: annezazu's profile annezazu Owned by:
Milestone: Awaiting Review Priority: low
Severity: normal Version:
Component: Bundled Theme Keywords: has-patch
Focuses: css Cc:

Description (last modified by sabernhardt)

Originally reported here and moving over: GB51248

This variation does the following for the background:

linear-gradient(180deg, var(--wp--preset--color--base) 0 min(24rem, 10%), var(--wp--preset--color--secondary) 0% 30%, var(--wp--preset--color--base) 100%)

As Justin notes, in particular, the min(24rem, 10%) is essentially saying to use the lower value (either 24rem or 10%). On pages with little content, it is pretty much guaranteed to be 10% of the <body> height.

As a result, any block that can change the page height will run into issues.

Change History (5)

#1 @sabernhardt
11 months ago

  • Description modified (diff)
  • Focuses css added
  • Summary changed from TT3 Aubergine variation: background implementation causes any block that impacts page height to impact header to Twenty Twenty-Three: Aubergine variation's background implementation causes any block that impacts page height to impact header

#2 @sabernhardt
11 months ago

  • Description modified (diff)

#3 @sabernhardt
11 months ago

Was the measurement intended as 10vh instead of 10%?

This ticket was mentioned in PR #4650 on WordPress/wordpress-develop by @mikachan.


10 months ago
#4

  • Keywords has-patch added; needs-patch removed

This PR changes the height of the top of the background on the Aubergine variation, to hopefully improve its relative height to the page height.

I've swapped a min() calculation with clamp(), to try and make the height differences more gradual and make the height slightly larger when the page content is quite short.

Hopefully addresses concerns raised in https://github.com/WordPress/gutenberg/issues/51248. It would be great if @anarieldesign has a chance to take a look at these changes too.

Trac ticket: https://core.trac.wordpress.org/ticket/58475

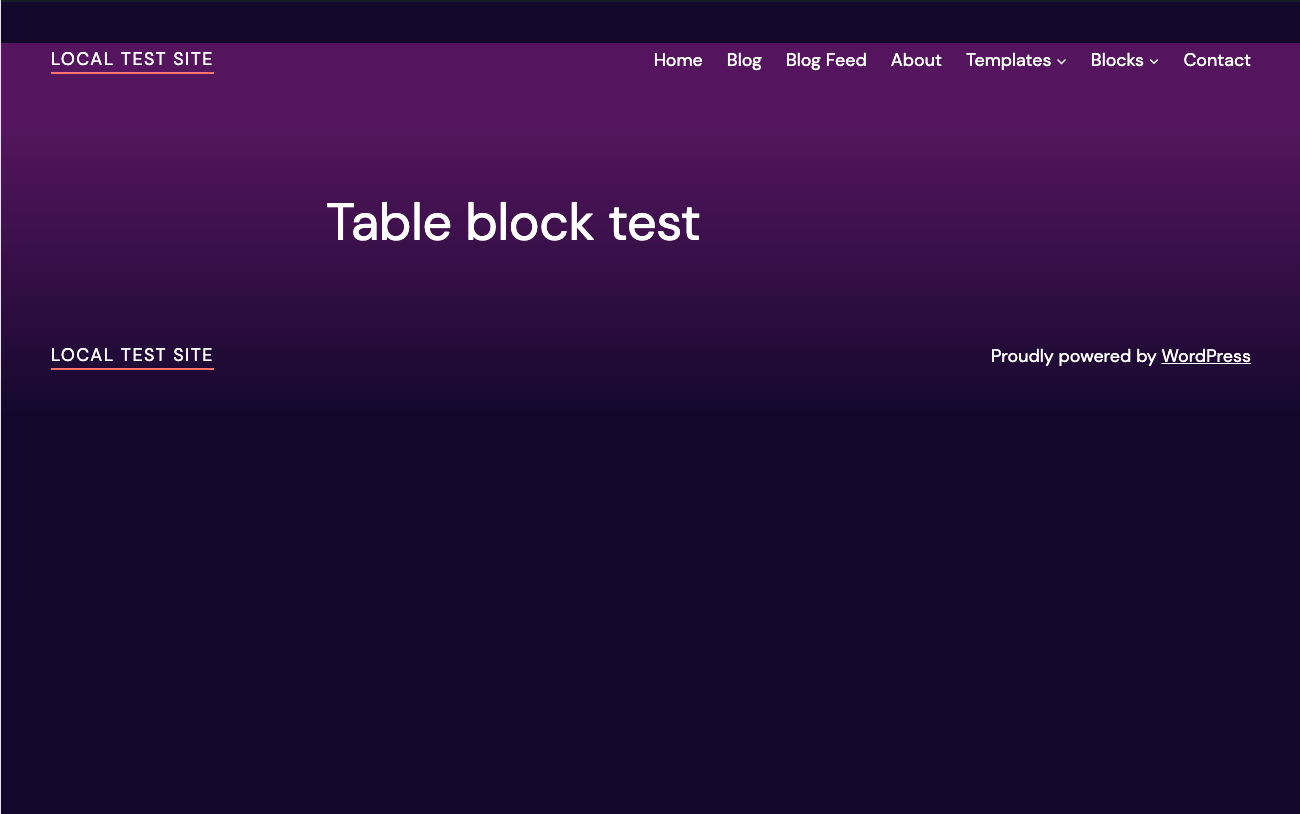

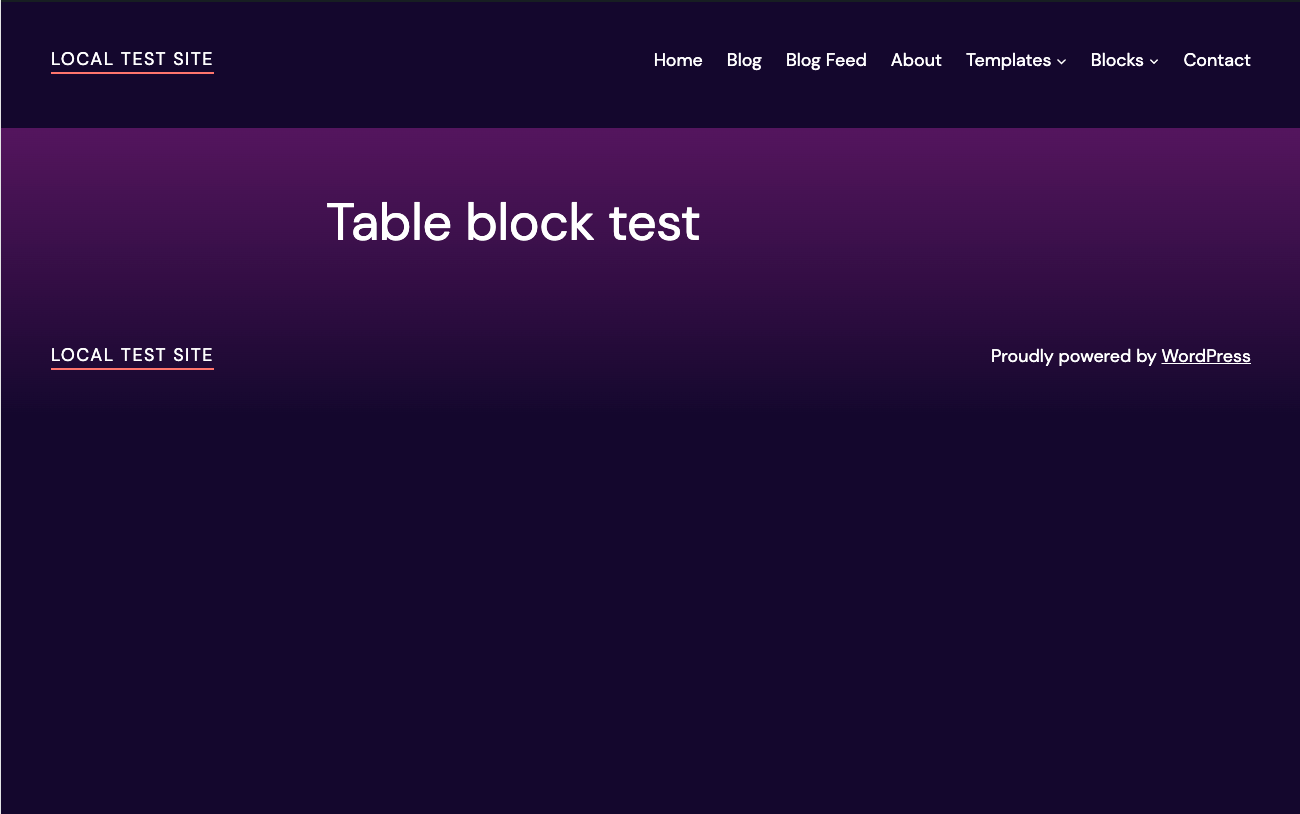

Example of changes on a page with a short height:

Before After
https://i0.wp.com/github.com/WordPress/wordpress-develop/assets/1645628/7f097e2d-bea1-49f9-8ca9-997df88a1704 https://i0.wp.com/github.com/WordPress/wordpress-develop/assets/1645628/e5414ffd-1aed-4ec9-a6fe-cb700810a644

#5 @mikachan
10 months ago

I've tried to improve this by using a clamp() calculation for the height rather than using min().

Was the measurement intended as 10vh instead of 10%?

The vh units are working better - I've swapped the previous 10vh for a min of 10vh and a max of 14vh. I think this is working better, but it would be great to hear what others think.
