Math component Problem with matrix

[blackstar1991]

I tested new WP 6.9 and their component Math, and found that it has problem with work with matrixes in LaTeX

Multiplication of three matrices

\[
\begin{pmatrix}
1 & 0 \\
0 & 1
\end{pmatrix}
\cdot
\begin{pmatrix}
2 & 3 \\
4 & 5
\end{pmatrix}
\cdot
\begin{pmatrix}
x \\
y
\end{pmatrix}
=
\begin{pmatrix}
2x + 3y \\
4x + 5y
\end{pmatrix}
\]

shoude convert to

(10​01​)⋅(24​35​)⋅(xy​)=(2x+3y4x+5y​)

but I see problem -> Can't use function '\]' in math mode at position 69: …rix} = ad - bc \̲]̲

also the same -> Matrix with determinant

\[
\det(A) =
\begin{vmatrix}
a & b \\
c & d
\end{vmatrix}
= ad - bc
\]

shoude be -> `det(A)=
​ac​bd​
​=ad−bc`

Don't work. Please fix

[ellatrix]

Can you try removing \[? The code should not be wrapped in \[\]

\begin{pmatrix}
1 & 0 \\
0 & 1
\end{pmatrix}
\cdot
\begin{pmatrix}
2 & 3 \\
4 & 5
\end{pmatrix}
\cdot
\begin{pmatrix}
x \\
y
\end{pmatrix}
=
\begin{pmatrix}
2x + 3y \\
4x + 5y
\end{pmatrix}

[blackstar1991]

Yes, it works, but if this formula is imported from other sources, it will be a problem.
Maybe you shoude add description that symbols need to be corrected to \begin{equation} and \end{equation}

[ellatrix]

You already had \begin{pmatrix} etc., you just needed to remove the other brackets. Could you elaborate on the importing? How are you importing this math text?

[wildworks]

Just to be safe, change the milestone to 6.9.

[iflairwebtechnologies]

Documentation update: clarify that \[ \] and $$ $$ must not be used inside Math block.

[iflairwebtechnologies]

The attached patch updates inline comments describing math calculations in the targeted area of core. The existing comments were either misleading or incomplete. This patch standardizes terminology, clarifies formula behavior, and aligns the documentation with the actual implementation logic.
This improves maintainability and developer clarity. No code behavior or output is modified.

[ellatrix]

@blackstar1991 could you let me know how you were entering the LaTeX? I think we can make some improvements in the editor by stripping those common delimiter used for full LaTeX documents on paste.

But I think it would be better suited for a point release.

[blackstar1991]

I used plugins for it: ​https://wordpress.org/plugins/search/LaTeX/
I tested this component just out of curiosity, because when I was a student I often used LaTeX to communicate with teachers on forums.

*If you need real testing of this component, you can simply ask an AI model to generate 50–100 physics or mathematics formulas and then convert them to LaTeX and check results in WP.

[ellatrix]

Well, thank you for testing! I also frequently use this, so I totally get your problem. What we accept is LaTeX math mode, so just the code used to input math, but not all layout/document level LaTeX. Those brackets are used to delimit the math mode from the other syntax, even outside of LaTeX (like Markdown or HTML documents), to parse/detect the LaTeX math mode code. In the visual editor however, we don't need those delimiters. Even in popular libraries like KaTeX ​https://katex.org, this would error, and as a result also in editors such as Notion.

Let's address this in the next release, 7.0, to be a bit more forgiving. I don't think it's a critical issue. Happy to consider it in point release if we get more reports.

[audrasjb]

As per today's 7.0 bug scrub:

There is a patch, but it's only a markdown file to update the documentation, it doesn't fix the outlined issue.
Are we good only updating the docs or do we want to fix the issue? If so and given we're on beta cycle, I'd suggest to move this ticket to Future Release.

[audrasjb]

As per today's 7.0 pre-RC1 bug scrub:
Moving to Future Release, see previous comment.

[wildworks]

If updating the documentation is sufficient to address this ticket, we can simply add a note to the following file. This is the README for the individual block, which will be published as part of the Block Editor Handbook.

​https://github.com/WordPress/gutenberg/blob/trunk/packages/block-library/src/math/README.md
​https://developer.wordpress.org/block-editor/reference-guides/core-blocks/core-blocks-text/core-block-math/

@blackstar1991, Can you submit a PR to update this README in the Gutenberg repository? In any case, I don't think this ticket addresses a critical issue, so I will change the milestone.

[blackstar1991]

Replying to wildworks:

If updating the documentation is sufficient to address this ticket, we can simply add a note to the following file. This is the README for the individual block, which will be published as part of the Block Editor Handbook.

​https://github.com/WordPress/gutenberg/blob/trunk/packages/block-library/src/math/README.md
​https://developer.wordpress.org/block-editor/reference-guides/core-blocks/core-blocks-text/core-block-math/

@blackstar1991, Can you submit a PR to update this README in the Gutenberg repository? In any case, I don't think this ticket addresses a critical issue, so I will change the milestone.

I continued testing more complex mathematical formulas for matrices, and I can say that they don't look good.

Examles -

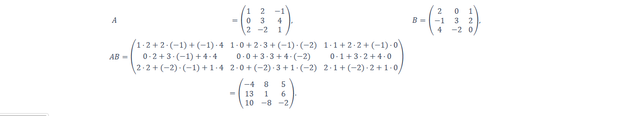

1. Multiplication of Two 3×3 Matrices

   \begin{aligned}
   A &=
   \begin{pmatrix}
   1 & 2 & -1 \\
   0 & 3 & 4 \\
   2 & -2 & 1
   \end{pmatrix},
   &
   B &=
   \begin{pmatrix}
   2 & 0 & 1 \\
   -1 & 3 & 2 \\
   4 & -2 & 0
   \end{pmatrix},
   \\[8pt]
   AB &=
   \begin{pmatrix}
   1\cdot2+2\cdot(-1)+(-1)\cdot4 &
   1\cdot0+2\cdot3+(-1)\cdot(-2) &
   1\cdot1+2\cdot2+(-1)\cdot0
   \\
   0\cdot2+3\cdot(-1)+4\cdot4 &
   0\cdot0+3\cdot3+4\cdot(-2) &
   0\cdot1+3\cdot2+4\cdot0
   \\
   2\cdot2+(-2)\cdot(-1)+1\cdot4 &
   2\cdot0+(-2)\cdot3+1\cdot(-2) &
   2\cdot1+(-2)\cdot2+1\cdot0
   \end{pmatrix}
   \\[8pt]
   &=
   \begin{pmatrix}
   -4 & 8 & 5 \\
   13 & 1 & 6 \\
   10 & -8 & -2
   \end{pmatrix}.
   \end{aligned}

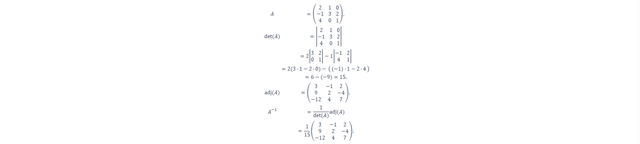

2. Finding the inverse matrix using algebraic complements

   \begin{aligned}
   A &=
   \begin{pmatrix}
   2 & 1 & 0 \\
   -1 & 3 & 2 \\
   4 & 0 & 1
   \end{pmatrix},
   \\[6pt]
   \det(A)
   &=
   \begin{vmatrix}
   2 & 1 & 0 \\
   -1 & 3 & 2 \\
   4 & 0 & 1
   \end{vmatrix}
   \\
   &=
   2
   \begin{vmatrix}
   3 & 2 \\
   0 & 1
   \end{vmatrix}
   -
   1
   \begin{vmatrix}
   -1 & 2 \\
   4 & 1
   \end{vmatrix}
   \\
   &=
   2(3\cdot1-2\cdot0)
   -
   \left((-1)\cdot1-2\cdot4\right)
   \\
   &=6-(-9)=15.
   \\[8pt]
   \operatorname{adj}(A)
   &=
   \begin{pmatrix}
   3 & -1 & 2 \\
   9 & 2 & -4 \\
   -12 & 4 & 7
   \end{pmatrix},
   \\[8pt]
   A^{-1}
   &=
   \frac{1}{\det(A)}\operatorname{adj}(A)
   \\
   &=
   \frac{1}{15}
   \begin{pmatrix}
   3 & -1 & 2 \\
   9 & 2 & -4 \\
   -12 & 4 & 7
   \end{pmatrix}.
   \end{aligned}

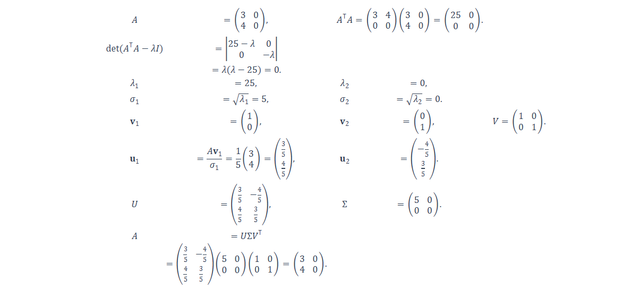

3. Singular Value Decomposition (SVD) of a Matrix

\begin{aligned}
A &=
\begin{pmatrix}
3 & 0 \\
4 & 0
\end{pmatrix},
&
A^{\mathsf T}A
&=
\begin{pmatrix}
3 & 4 \\
0 & 0
\end{pmatrix}
\begin{pmatrix}
3 & 0 \\
4 & 0
\end{pmatrix}
=
\begin{pmatrix}
25 & 0 \\
0 & 0
\end{pmatrix}.
\\[10pt]
\det(A^{\mathsf T}A-\lambda I)
&=
\begin{vmatrix}
25-\lambda & 0 \\
0 & -\lambda
\end{vmatrix}
\\
&=\lambda(\lambda-25)=0.
\\[8pt]
\lambda_1&=25,
&
\lambda_2&=0,
\\
\sigma_1&=\sqrt{\lambda_1}=5,
&
\sigma_2&=\sqrt{\lambda_2}=0.
\\[10pt]
\mathbf v_1&=
\begin{pmatrix}
1\\0
\end{pmatrix},
&
\mathbf v_2&=
\begin{pmatrix}
0\\1
\end{pmatrix},
&
V&=
\begin{pmatrix}
1&0\\
0&1
\end{pmatrix}.
\\[10pt]
\mathbf u_1
&=
\frac{A\mathbf v_1}{\sigma_1}
=
\frac{1}{5}
\begin{pmatrix}
3\\4
\end{pmatrix}
=
\begin{pmatrix}
\frac{3}{5}\\[2pt]
\frac{4}{5}
\end{pmatrix},
&
\mathbf u_2
&=
\begin{pmatrix}
-\frac{4}{5}\\[2pt]
\frac{3}{5}
\end{pmatrix}.
\\[12pt]
U&=
\begin{pmatrix}
\frac{3}{5} & -\frac{4}{5} \\
\frac{4}{5} & \frac{3}{5}
\end{pmatrix},
&
\Sigma&=
\begin{pmatrix}
5&0\\
0&0
\end{pmatrix}.
\\[12pt]
A
&=
U\Sigma V^{\mathsf T}
\\
&=
\begin{pmatrix}
\frac{3}{5} & -\frac{4}{5} \\
\frac{4}{5} & \frac{3}{5}
\end{pmatrix}
\begin{pmatrix}
5&0\\
0&0
\end{pmatrix}
\begin{pmatrix}
1&0\\
0&1
\end{pmatrix}
=
\begin{pmatrix}
3&0\\
4&0
\end{pmatrix}.
\end{aligned}

[wildworks]

@blackstar1991, Could you post the issues you are aware of and their solutions to the Gutenberg repo? That way, we can close this ticket as reported-upstream.

[blackstar1991]

Here are the problems I encountered while testing this Math block.
​https://github.com/WordPress/gutenberg/issues/80732
